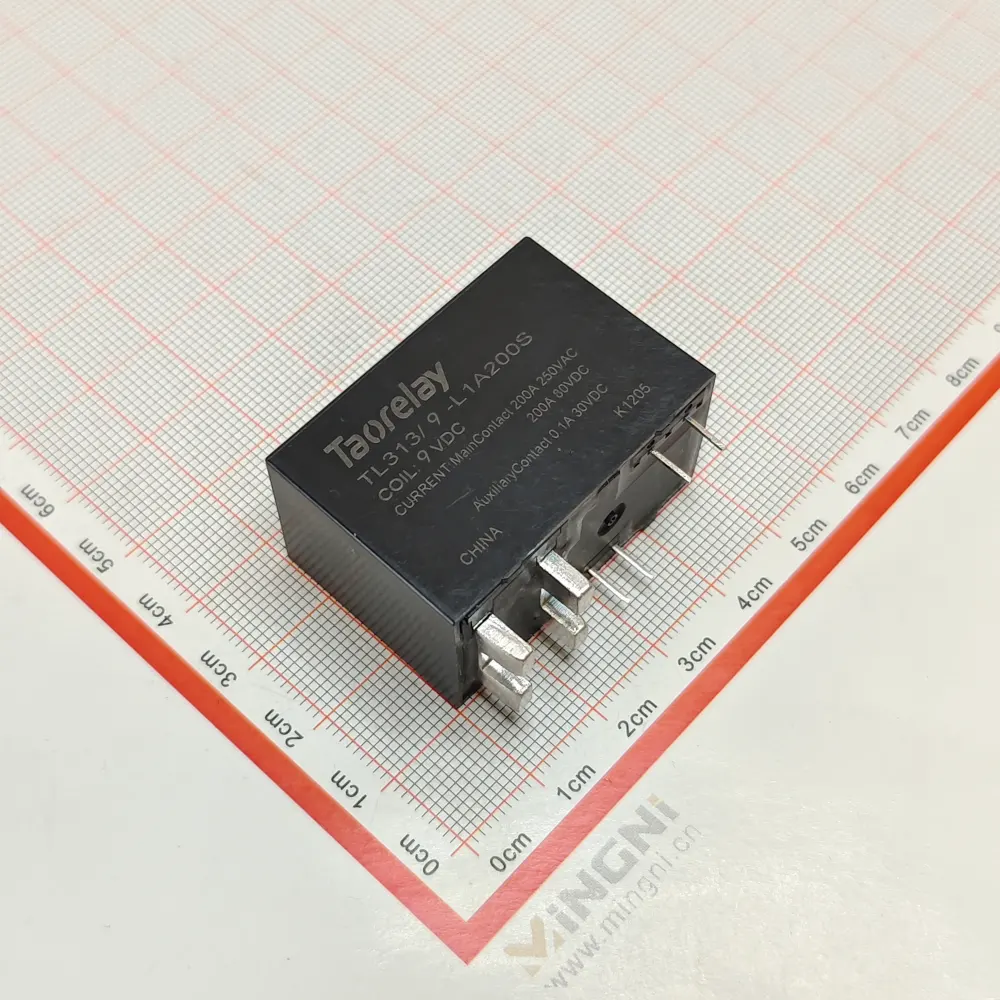

Product Overview
Key Features
- 150A Contact Switching, 200A Current Carrying Capacity: Ensures high performance and reliability.
- Small Size & Low Power Consumption: Compact design with efficient energy use.
- Strong Impact Resistance: Built to withstand harsh conditions.
- High Reliability: Designed for long-lasting performance.
- Strong Magnetic Arc Blowing Capability: Enhances safety and durability.
- Touch Point and Coil Resistance Pressure: 4 KV withstand voltage.
- Single and Double Coil Options: Flexible configurations to meet different needs.
- Environmentally Friendly: RoHS compliant and eco-friendly design.
- Complies with IEC 62055-31 UC 2: Meets international standards for reliability and safety.
Technical Specifications
| Model | TL313 |
|---|---|
| Rated Load | 150A/200A 250VAC / 60VDC |
| Maximum Switching Current | 200A |
| Maximum Switching Voltage | 380 VAC |
| Maximum Switching Power | 37500 VA / 50000 VA |
| Contact Material | Silver Alloy |
| Contact Resistance | 5mΩ Max. (12VDC 1A) |
| Closing Time | 20ms Max. |
| Release Time | 20ms Max. |
| Insulation Resistance | 1,000MΩ Min. (DC500VDC) |
| Medium Withstand Voltage | Between contacts: AC 1,800V; 50/60 Hz 1 min |
| Creepage Distance | 10mm |
| Shock Resistance | Durable: 100G m in, Malfunction: 10G m in |
| Mechanical Life | 300,000 operations (1800 times per hour) |
| Electrical Life | 125A 250VAC / 60VDC (Resistance), 150A current carrying |
| Ambient Temperature | -40℃ ~ +85℃ |
| Humidity | 5% ~ 85% RH |
Coil Specifications
| Rated Voltage (VDC) | Coil Resistance ±10% (Ω) | Trip/Reset Voltage (Max) (VDC) | Pulse Width (ms) | Rated Power (W) |
|---|---|---|---|---|
| 9 | 10.5 (Single coil), 2×12 (Double coil) | Rated voltage 70% | ≥50 ms | About 7.7W (Single coil), About 15.4W (Double coil) |
| 12 | 18.7 (Single coil), 2×9.35 (Double coil) | – | – | – |
| 24 | 74.8 (Single coil), 2×37.4 (Double coil) | – | – | – |
| 48 | 299 (Single coil), 2×149.5 (Double coil) | – | – | – |
Important Notes
- The magnetic latching relay is in the actuated state when it leaves the factory. However, due to the impact and stress during transportation or installation, the contact may change state. When in use, it can be restored to the required state according to the needs.
- To ensure the operation or reset of the magnetic latching relay, the excitation voltage applied to the coil should reach the required rated voltage. Do not apply voltage to the operating coil and reset coil at the same time. The excitation voltage of the coil should not be applied for more than 1 minute.
- Magnetic latching relay load without soft copper brush wire. The terminal leads cannot be soldered. Cannot be turned at will. And the two lead pins cannot be rigidly fixed at the same time.
- The relay should not be used in an environment where corrosive gases or other harsh environmental factors are present.
Disclaimer
This product specification is for reference only and is subject to change without prior notice. Customers should select the appropriate product model based on the performance parameter requirements of their specific application areas. No liability and loss caused by improper selection will be borne by the customer. For more technical support, please contact Mingni Technology.
