TL313 Series Magnetic Holding Relay overview:
The TL313 Series Magnetic Holding Relay is a high-performance switching solution designed for energy-efficient and high-load applications. Featuring 150A switching capacity and 200A continuous current rating, this relay delivers robust performance in compact dimensions (39.4mm×22mm×27.5mm). Its pulse-driven operation ensures zero static power consumption, making it ideal for smart energy systems like prepaid meters and industrial automation.
Key advantages include 4KV insulation between contacts and coil, strong magnetic arc suppression, and compliance with RoHS and IEC62055-31 UC2 standards. Available in single/dual coil configurations with 9V–48V DC options, the TL313 achieves reliable switching via ≥50ms pulses while maintaining a 300,000-cycle mechanical lifespan.
Engineered for harsh environments, it operates at -40°C to +85°C and withstands 100G shock resistance, ensuring stability in power distribution, telecom, and motor control systems. The silver alloy contacts minimize resistance (≤5mΩ) and support up to 37,500VA switching power.
Choose the TL313 magnetic holding relay for applications demanding high reliability, low energy consumption, and long-term durability.
Magnetic Holding Relay Key Features
- Ultra-High Load Capacity:
- 150A switching current / 200A continuous current.
- Max switching voltage: 380VAC.
- Energy-Efficient Design:
- Pulse-driven operation (no continuous power required).
- Rated power: 7.7W (single coil) / 15.4W (dual coil).
- Robust & Reliable:
- Strong magnetic arc extinction.
- Shock-resistant (100G min) and vibration-proof (10–55Hz).
- Compact Size: 39.4mm x 22mm x 27.5mm.
- Compliance & Safety:
- RoHS-certified, meets IEC62055-31 UC2 standards.
- 4KV insulation between contacts and coil.
Technical Specifications
Contact Performance
| Parameter | Value |
|---|---|
| Contact Material | Silver Alloy |
| Max Contact Resistance | 5mΩ (at 12VDC, 1A) |
| Max Switching Power | 37,500VA (resistive, 250VAC) |
| Operating Temperature | -40°C to +85°C |
Coil Parameters (Standard)
| Voltage (VDC) | Coil Resistance (±10%) | Pulse Width |
|---|---|---|
| 9V | 10.5Ω (single) / 24Ω (dual) | ≥50ms |
| 12V | 18.7Ω (single) / 18.7Ω (dual) | ≥50ms |
| 24V | 74.8Ω (single) / 74.8Ω (dual) | ≥50ms |
Magnetic Holding Relay Lifespan
- Mechanical: 300,000 cycles (1,800 operations/hour).
- Electrical:
- 125A/150A: 250VAC (resistive).
- 200A continuous current (rated).
Applications
- Smart Energy Systems: Prepaid meters, three-phase meters.
- Industrial Automation: Production line controls, motor switching.
- Power Distribution: Circuit breakers, reactive compensation devices.
- Telecom & IoT: Signal routing, remote control systems.
Why Choose TL313 Magnetic Holding Relay?
- Zero Power Consumption: Maintains state without energy input.
- High Safety: 4KV insulation between contacts and coil.
- Easy Integration: Compatible with single/dual coil configurations.

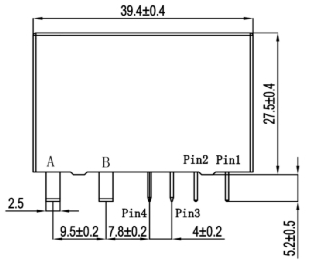

Dimensions & Diagrams
- Product Dimensions: 39.4mm x 22mm x 27.5mm.
- Wiring Diagrams:
Safety & Compliance
- Certifications: RoHS, IEC62055-31 UC2.
- Operating Guidelines:
- Ensure voltage ≥70% of rated value for reliable switching.
- Avoid simultaneous activation of set/reset coils.
- Do not solder or bend load terminals without soft copper brushes.
FAQ
Q: Can this relay handle high inrush currents?
A: Yes, it supports 200A surge currents with magnetic arc suppression.
Q: Is it suitable for outdoor use?
A: Operates reliably in -40°C to +85°C environments but avoid corrosive gases.
